Electric Bike/Bicycle E-bike E-scooter Brushless Controller 24V 36V 48V 350W 12A

Electric Bike/Bicycle E-bike E-scooter Brushless Controller 24V 36V 48V 350W 12A

$78.00 Regular Price
$59.81Sale Price
Excluding GST |





Note:The throttle interface and the controller throttle interface are not made by the same factory. The line sequence of this wiring port is not a perfect match. The buyer needs to adjust the line sequence by himself, so that the same color line sequence can be connected to each other.



24/36V/48V/60V 250-350W 10A-20A brushless gold controller function:



1.low level brake

2.cruise

3.brake light power

4.PAS(pedal assist)

5.reverse gear

6.high level brake

7.speed controller handle(throttle)

8.phase meter

9.three speed gear

10.hall meter

11.hall

12.intelligent recognition(self-learning lines)

13.head/tail light

14.electric door lock

15.phase line

16.battery



how to connect ?

1.connect the motor line (color to color)

2. connect the battery line(red wire :battery + , black:battery-)

3. connect the controller throttle line(color to color),connect electric lock

(if your throttle not have electric lock,controller electric lock can be shorted)

4. connect the hall line(if motor without hall line, don't need connect)

5.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,

if wheel forward ,Separate the self-learning line.)

6.other functions can be connected as needed.

intelligent brushless sine wave controller for electric bike/electric scooter/brushless motor



voltage:24V/36V/48V/52V/60V universal

current:10A-20A

rated power:250W-350W all can work

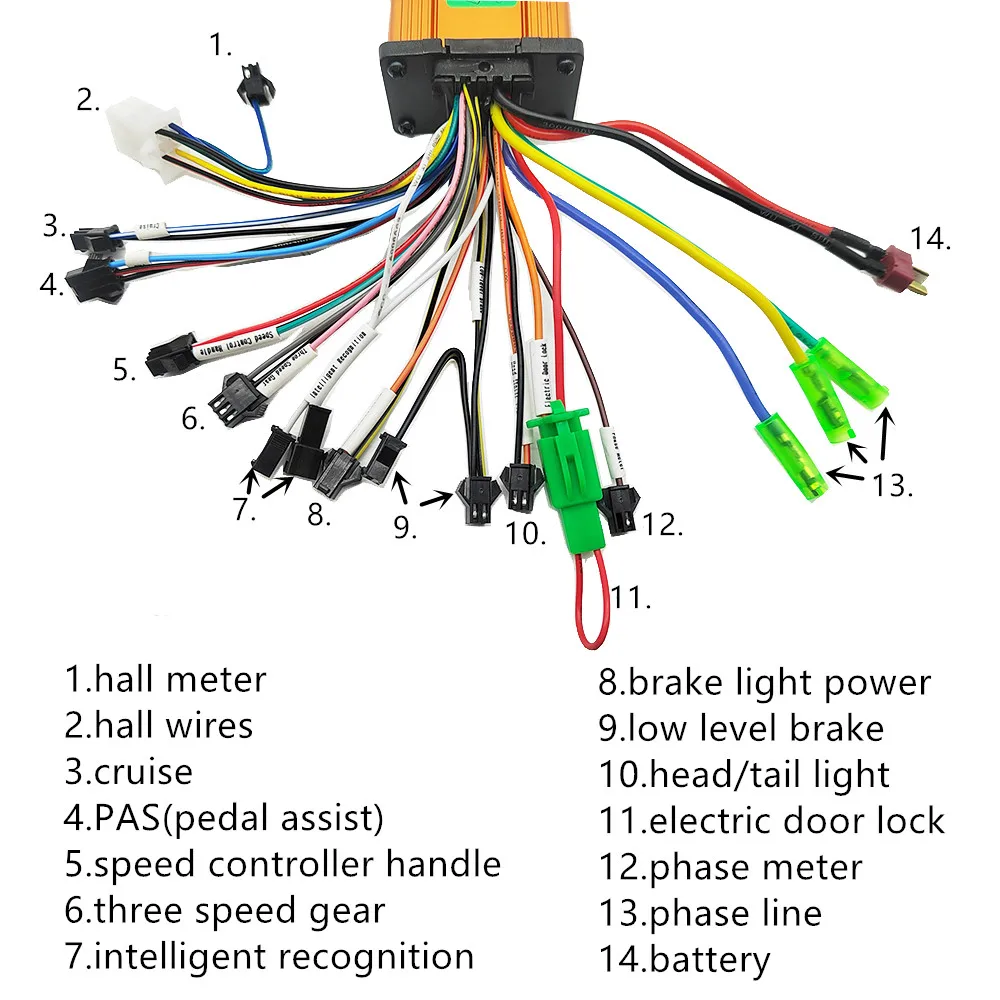

24/36V/48V/60V 250-350W 10A-20A brushless gold controller function:



1.hall meter

2.hall wires

3.cruise

4.PAS(pedal assist)

5.speed controller handle(throttle)

6.three speed gear

7.intelligent recognition(self-learning lines)

8.brake light power

9.low level brake

10.head/tail light

11.electric door lock

12.phase meter

13.phase line

14.battery



how to connect ?



1.connect the motor line (color to color)



2. connect the battery line(red wire :battery + , black:battery-)



3. connect the controller throttle line(color to color),connect electric lock



(if your throttle not have electric lock,controller electric lock can be shorted)



4. connect the hall line(if motor without hall line, don't need connect)



5.docking the two self-learning lines, the wheel will forward or reverse.



(1.if wheel forward ,Separate the self-learning line.



2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,
